5 layers Blown Film Extrusion
Multi layers coextrusion film blowing machine with 5 extruder,5 gear box,produce 5 layers film,suit to pack different kind of film.
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details

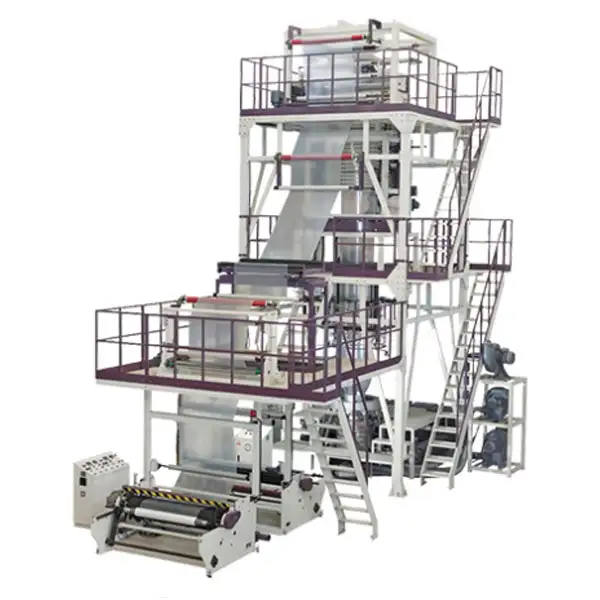

5 layers Blown Film Extrusion
Our company’s 5-layer Blown Film Extrusion production line is well-suited for various film production needs within the industry, allowing for the creation of both symmetrical and asymmetric barriers. This equipment is versatile and can be applied in a range of scenarios such as oil packaging, milk bags, solid container linings, and vacuum packaging.
5 layers Film
| Model | 5SJ-G1500 |
| Film Tube Width | 1500mm |
| Material | HDPE, LDPE, LLDPE, EVA, Nylon etc. |
| Air Ring | Double Lip Air ring |
| Screw Diameter | ф55×4 ф60×1 |
| Screw Ratio L/D | 30：1 |
| Material cooling | Water Cooling |
| Main Motor Power | 30Kw×4 37Kw×1 |
| Capacity(Single) | 300kg / h |
| One side film thickness | 0.03 – 0.2 mm |
| Total Power | 200kw |
| Machine size(cm) | 10 x 6.0 x 12.5 m |
| Machine Weight | 16T |
| Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) |
| Machine Working Time | 24 hours * 7 days |
| Warranty | 1 year |
| Technical Assistance | Engineers available to service machinery overseas |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

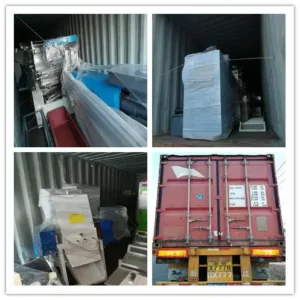

Shipment

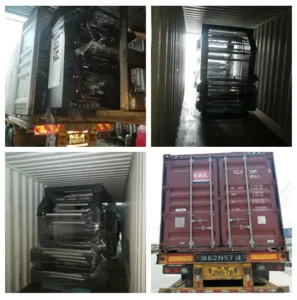

shipment of plastic bag machine

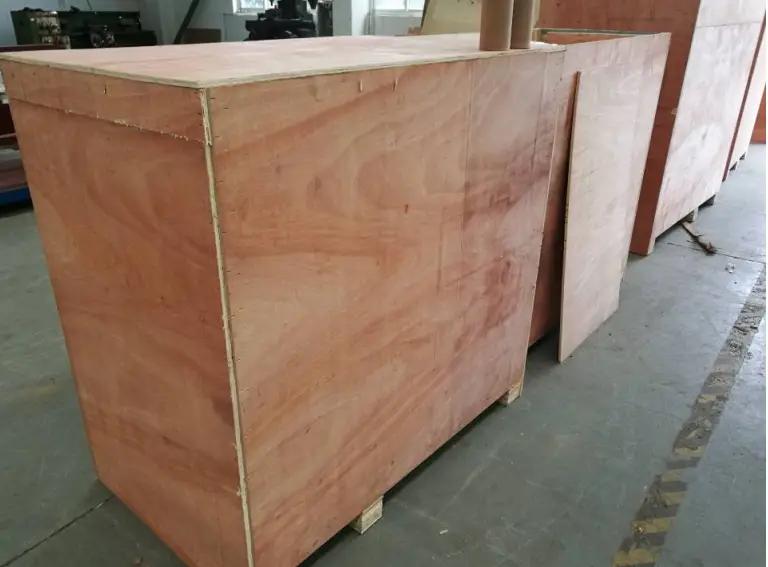

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

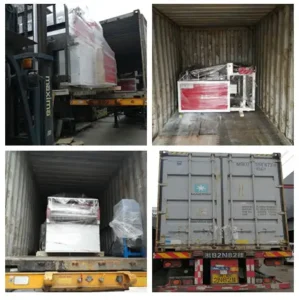

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).

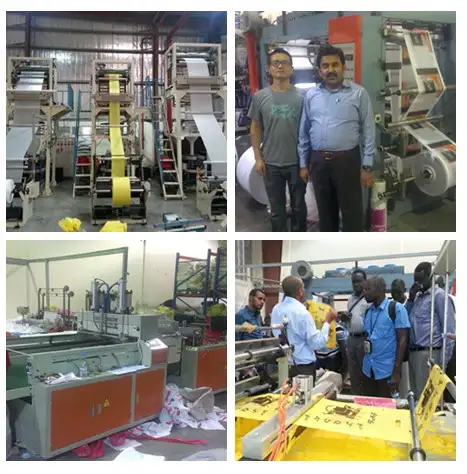

instalment service
install machines in customer factory
Machine parts supplier
Our Main parts cooperator as following brand,but standard parts all made from China.

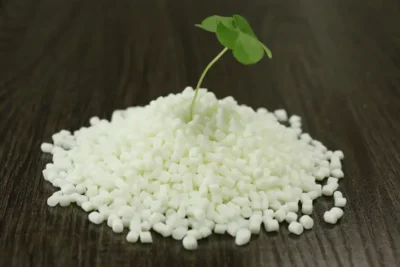

Material supplier
How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as
Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
